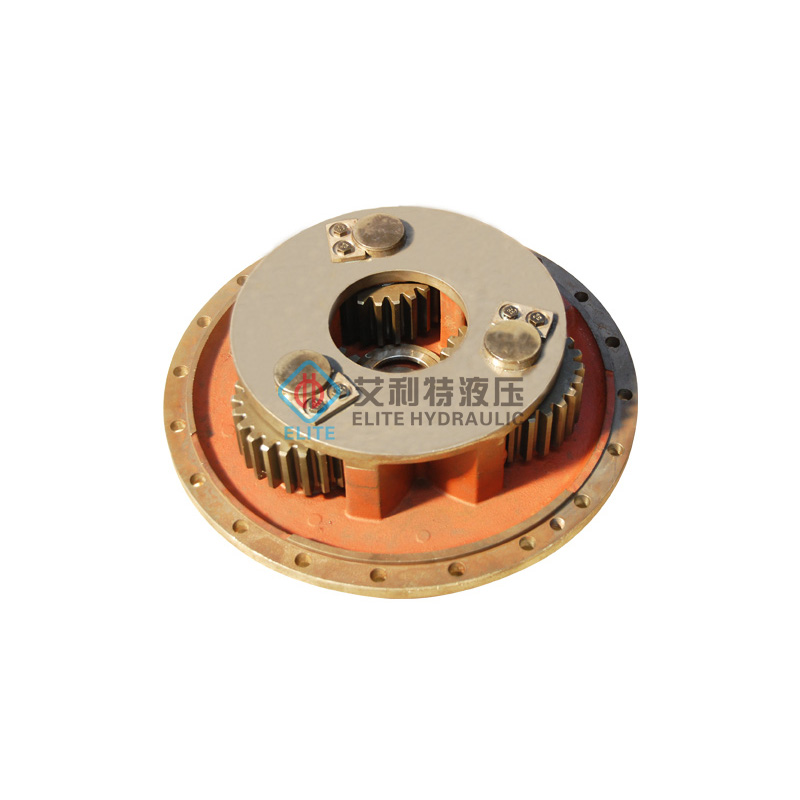

Higher-quality Drivetrain and Powertrain Parts for Dana Spicer 14D 16D 19D 20D Planetary Drive Axles

Product Description

Products Description
Designed for Underground loaders, Underground mining truck and other Underground Mining Equipment
Product Details
  • With super gear load capacity and super bridge load capacity, the technology is leading and has completely replaced the imported drive axle;
  • The rear axle has a built-in maintenance-free wet multi-disc brake and an external caliper disc parking brake, which provides stable braking, safety and reliability;
  • The rear axle is equipped with a forced differential lock, which enhances the vehicle's passing performance;
  • It is suitable for underground loaders, underground mining truck and other Underground Mining Equipment.
Details Images

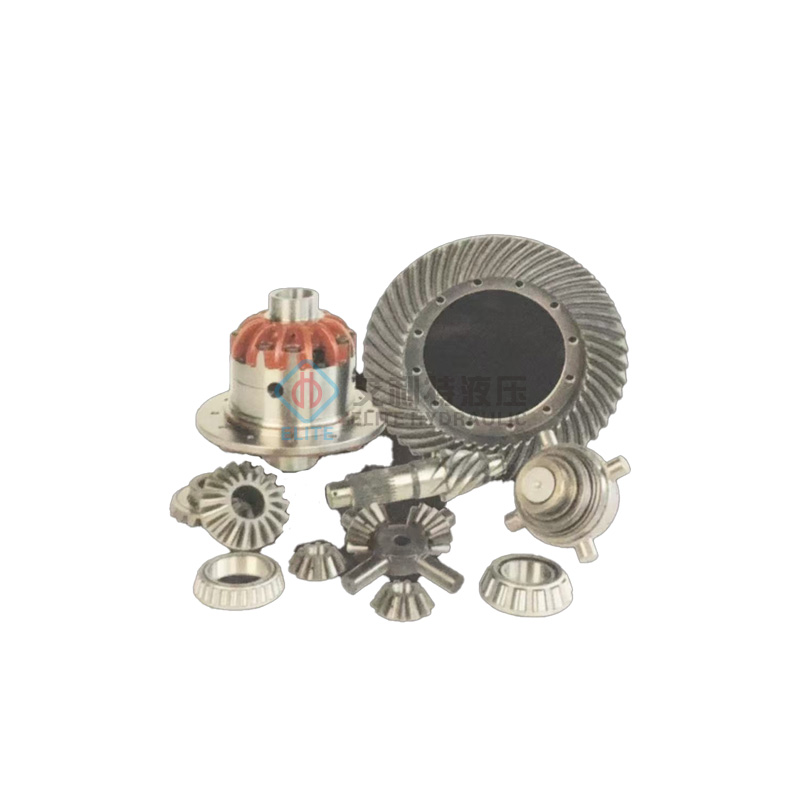

Axle Details Image 1

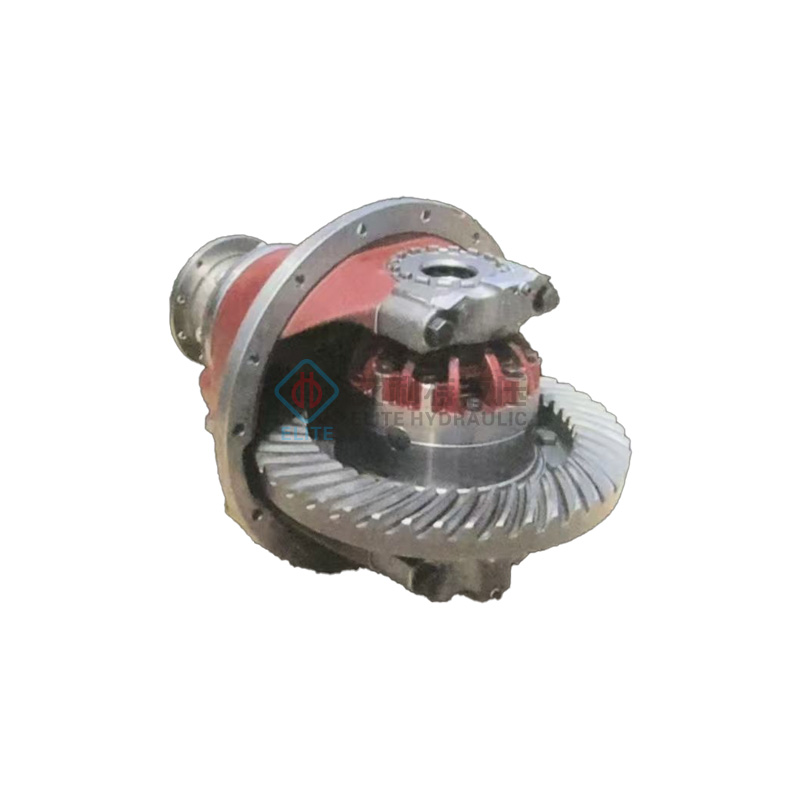

Axle Details Image 2

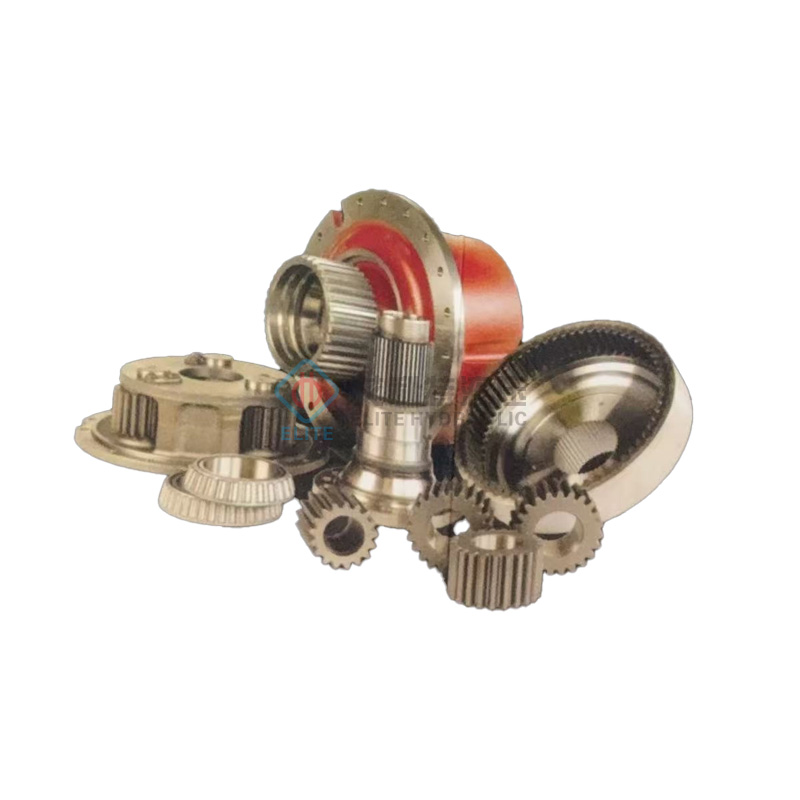

Axle Details Image 3
Technical Parameters

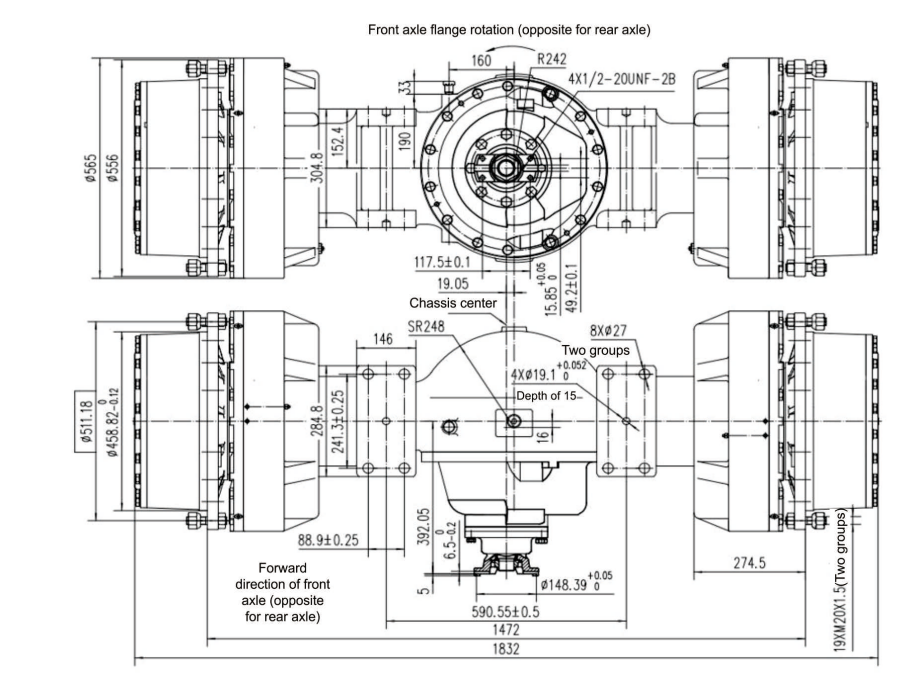

Technical Drawing
Parameter Unit Value
Braking torque N.m 20000
Brake-releasing pressure Mpa 10.4
Maximum cooling pressure Mpa 0.07
Main ratios I 5.286:1
Planetary Reduction Ratios I 4.941:1
Total speed ratio I 26.118:1
Maximum static load N 186700
Maximum input torque Nm 4290
Manufacturing processes

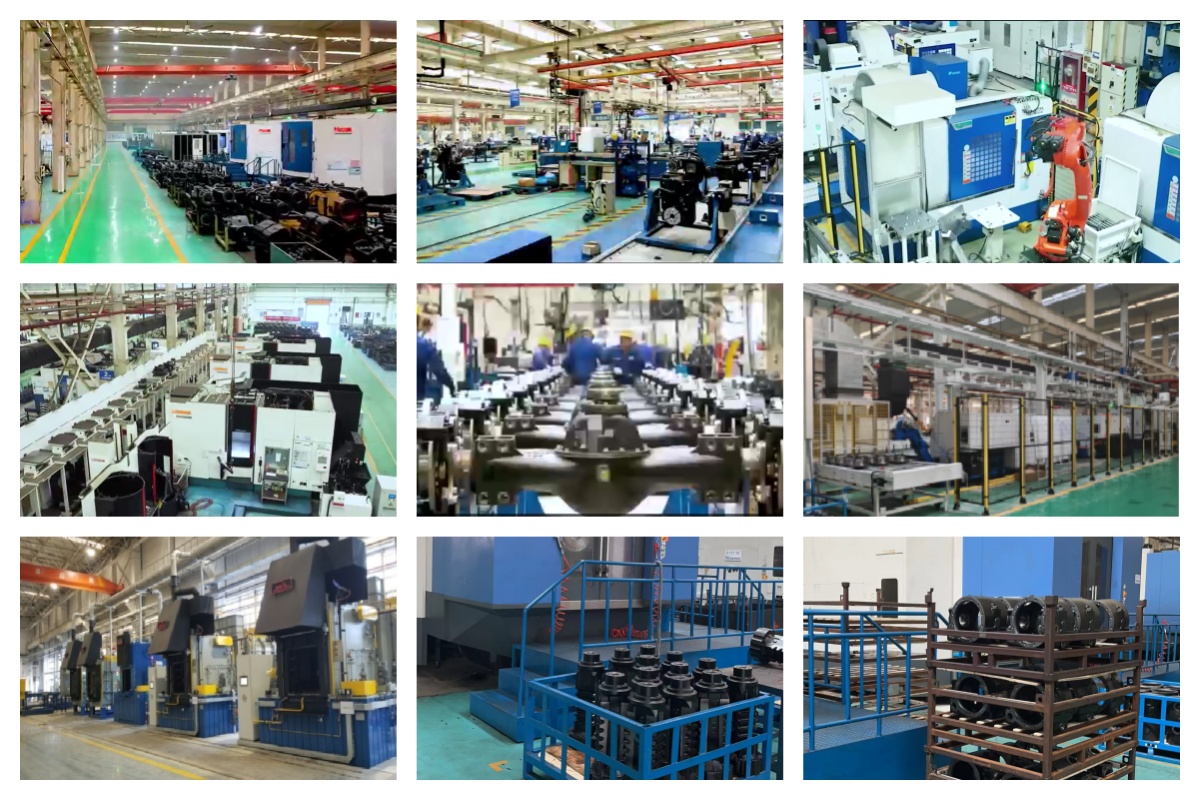

Manufacturing Process
Test

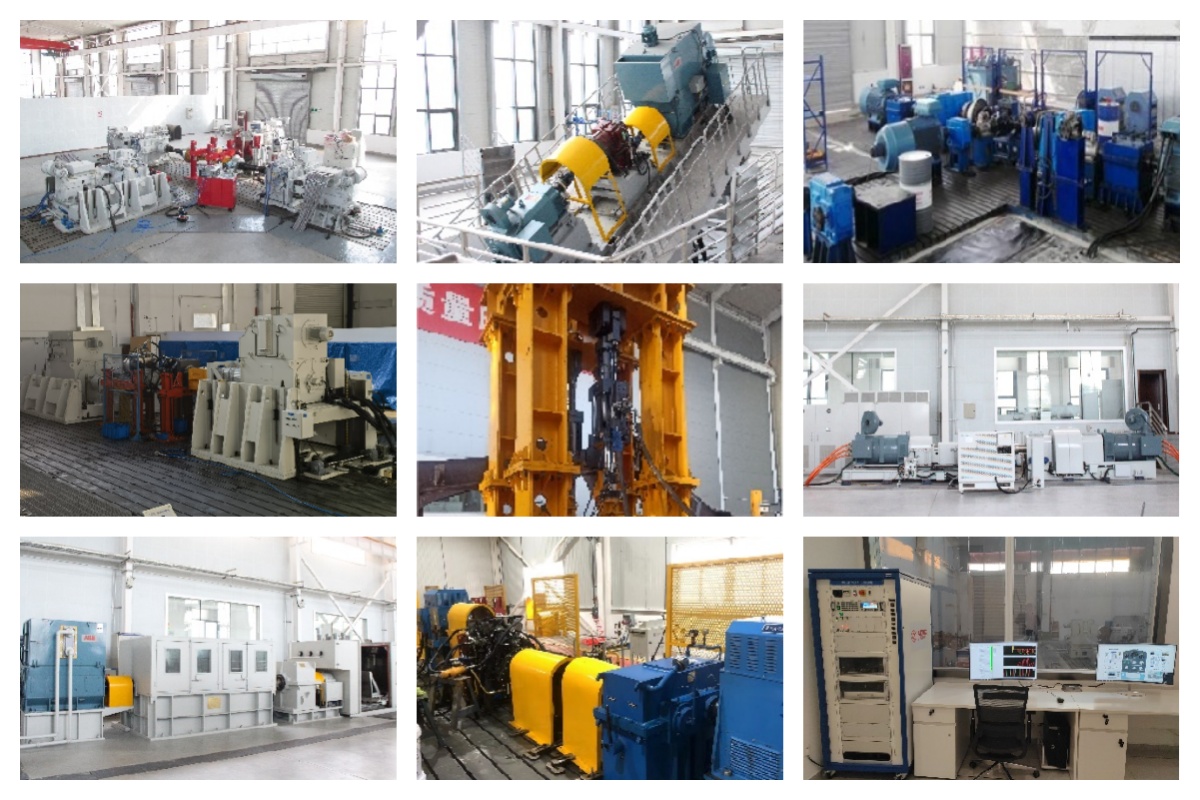

Testing and Quality Control
Application

Coal mine vehicles, mining vehicles, handling vehicles, tunnel construction vehicles, suitable for personnel carriers, material carriers, aerial work vehicles, rock drilling platforms, wheel excavators, telescopic forklifts, etc.

Production

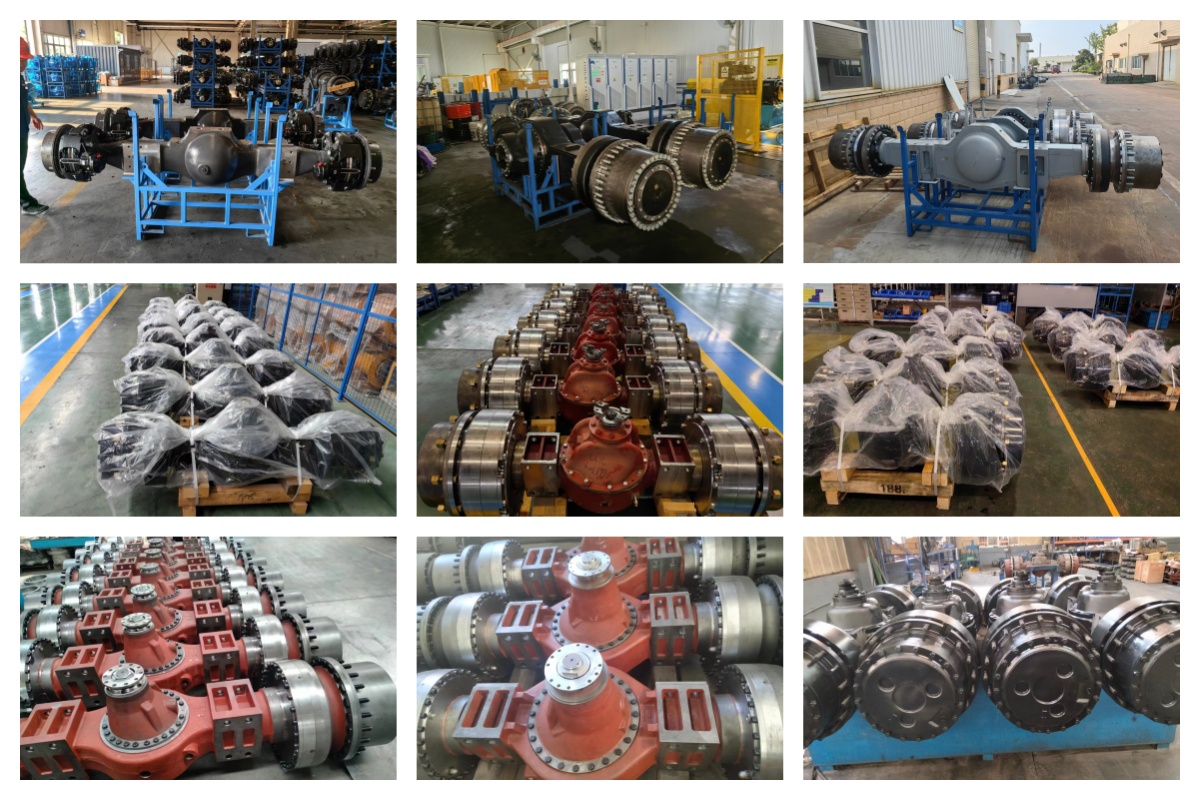

Production Facility

Committed to building a world-class drivetrain brand, striving to become a well-known manufacturer of planetary gearboxes, transfer cases, and axles. With more than 20 years of experience in transmission design and manufacturing, customized gearboxes, transfer cases, and axle solutions can be provided for any specific application.

Frequently Asked Questions (FAQ)
What types of equipment are these drive axles designed for?
They are designed for underground loaders, underground mining trucks, and other underground mining equipment.
What braking features are included in the rear axle?
The rear axle is designed with a built-in maintenance-free wet multi-disc brake and an external caliper disc parking brake, ensuring stable, safe, and reliable braking operations.
How does the rear axle improve the vehicle's passing performance?
The rear axle is equipped with a forced differential lock, which significantly enhances the vehicle's passing ability and traction in complex underground terrains.
What is the load capacity and maximum input torque of the axle?
According to the technical specifications, the maximum static load capacity is 186,700 N, and the maximum input torque is 4,290 Nm.
What other vehicles can apply this drivetrain technology?
It is suitable for coal mine vehicles, mining vehicles, handling vehicles, tunnel construction vehicles, personnel carriers, material carriers, aerial work vehicles, rock drilling platforms, wheel excavators, telescopic forklifts, and more.
Are custom drivetrain solutions available?
Yes, with over 20 years of experience in transmission design and manufacturing, customized planetary gearboxes, transfer cases, and axle solutions can be provided for any specific application.
