| Electrical Design | |
|---|---|
| Charging power | 1.4-22kW, 1~3 phase |
| Power supply | Single phase: 230VAC ± 20%, 50/60Hz. Three phase: 230/400VAC ± 20%, 50/60Hz. TN/TT/IT |
| Protection | UVP, OVP, OCP, Relay Stuck, Over Temperature |
| RCD Protection | Integrated 6mA DC |
| Metering Accuracy | ±2% Cl.A (1% by request) |
| Protection Rating | IP55, IK10 |
| General | |
| Charging mode | AC Mode 3 |
| HMI | 5 LEDs |

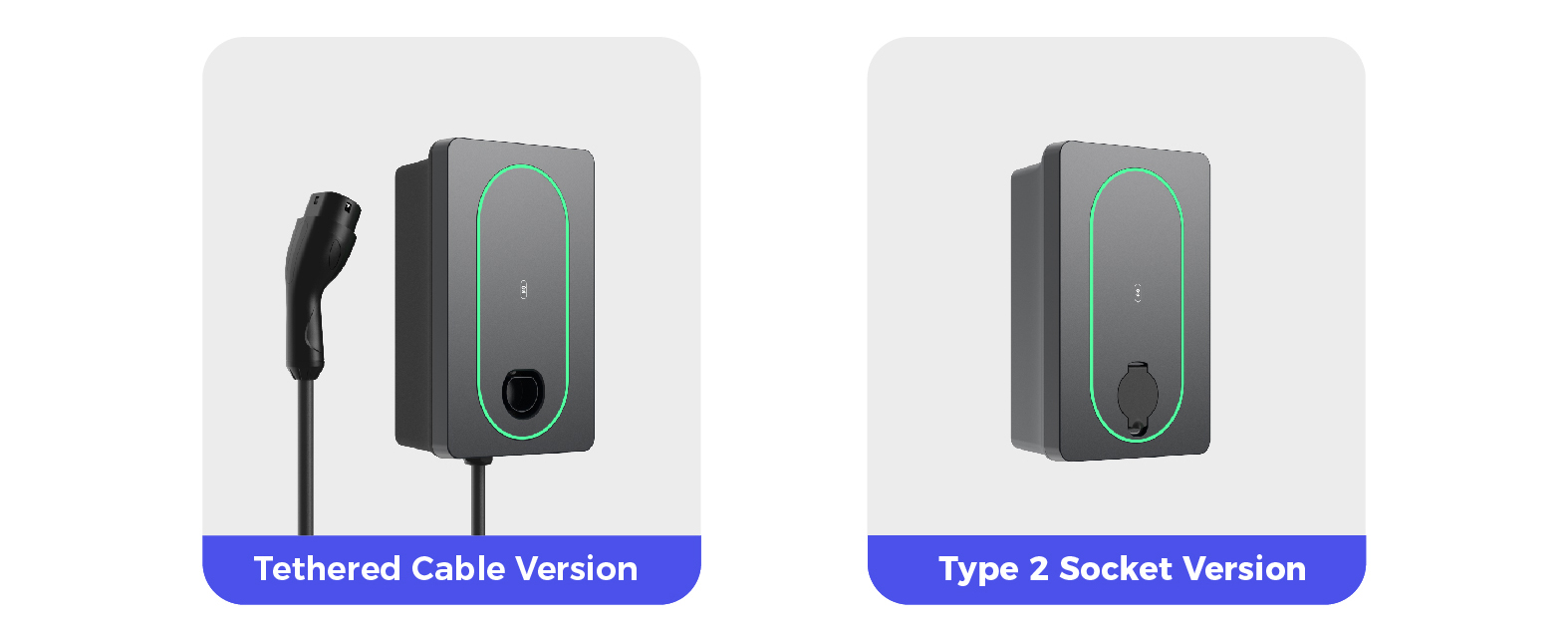

| Charging connector | Cable/Socket/Socket with shutter |
| Cable Length | 5m/7.5m (tethered varient only) |

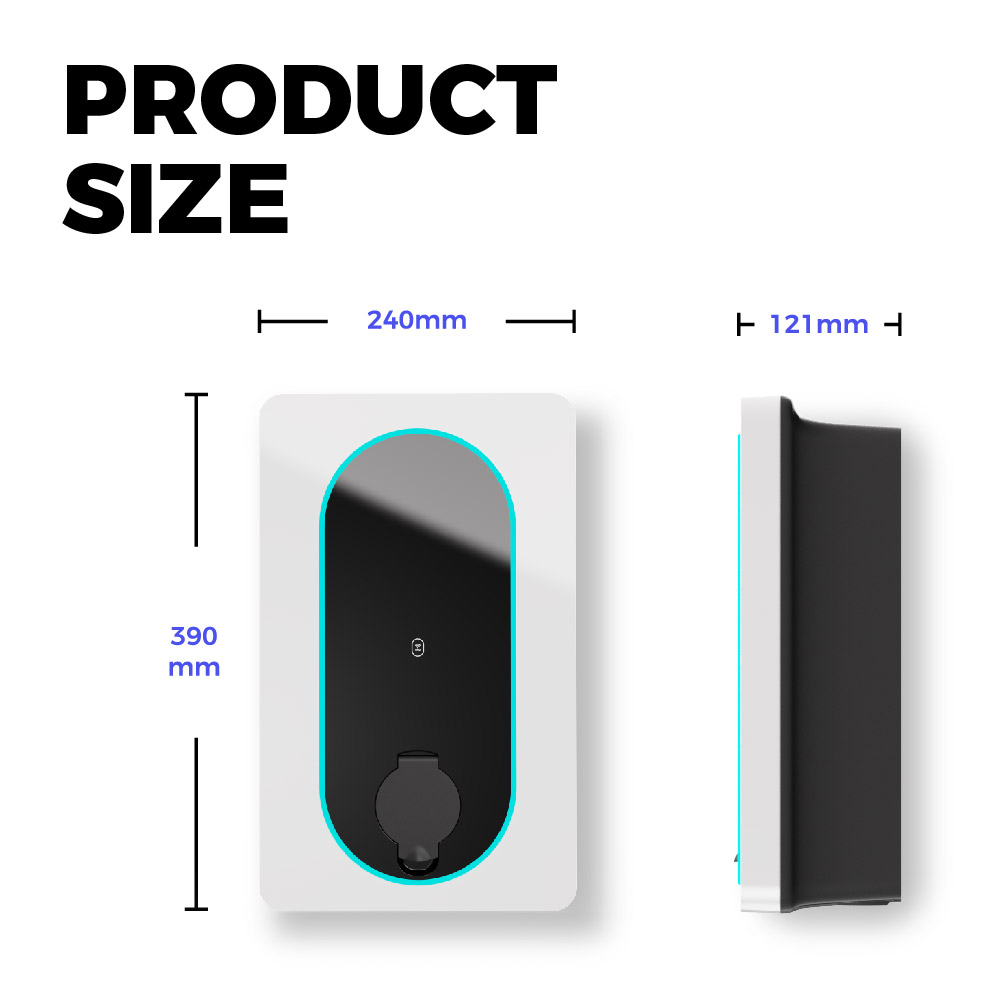

| Dimensions | 390*240*122mm |
| Wight | 4.3 ~ 7.2kg |

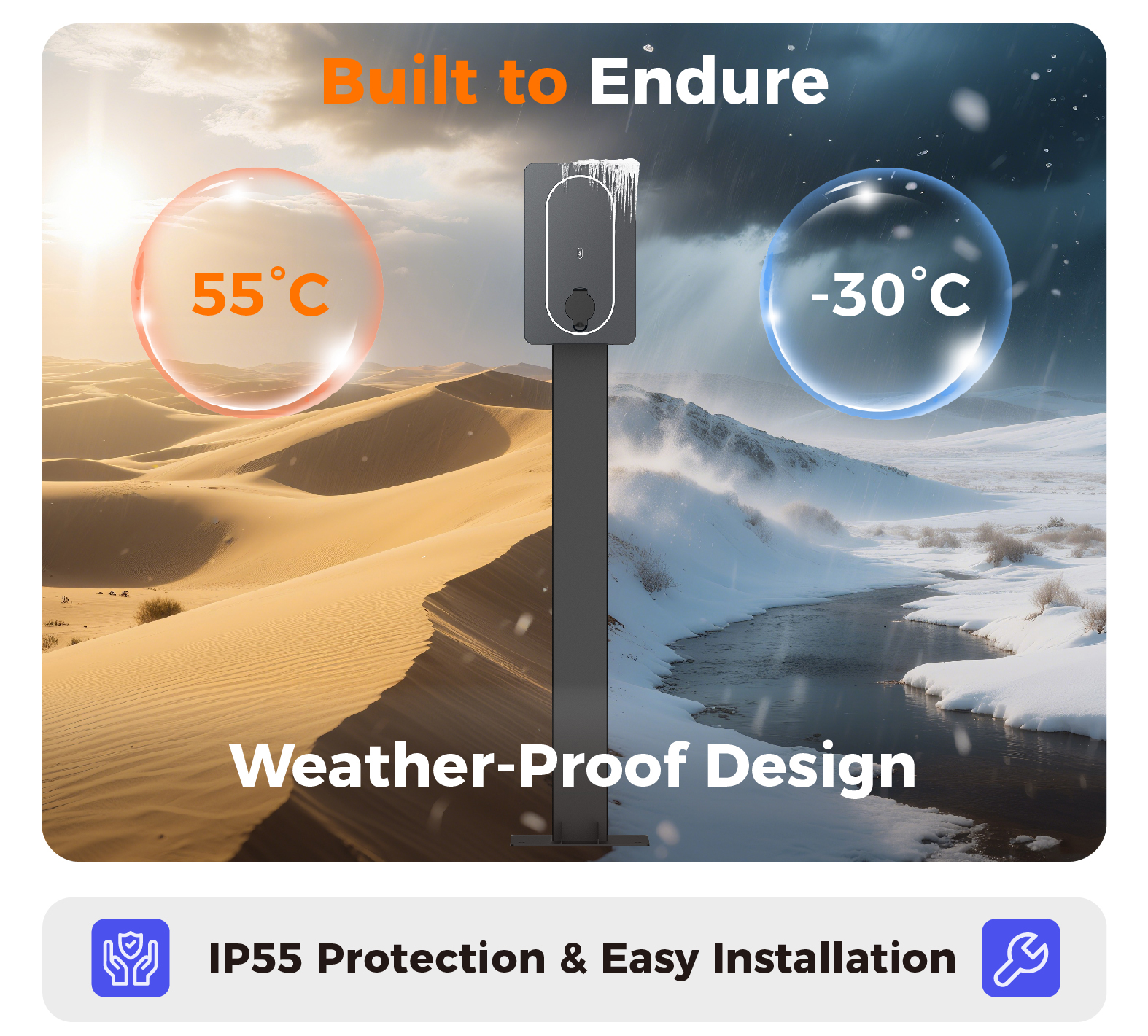

| Operating Temperature | -30°C~55°C |
| Communication | |
| Connectivity | RFID/ WIFI/ BLE/LAN(Optional) |
| User authentication | RFID, App, Plug & Charge, OCPP |

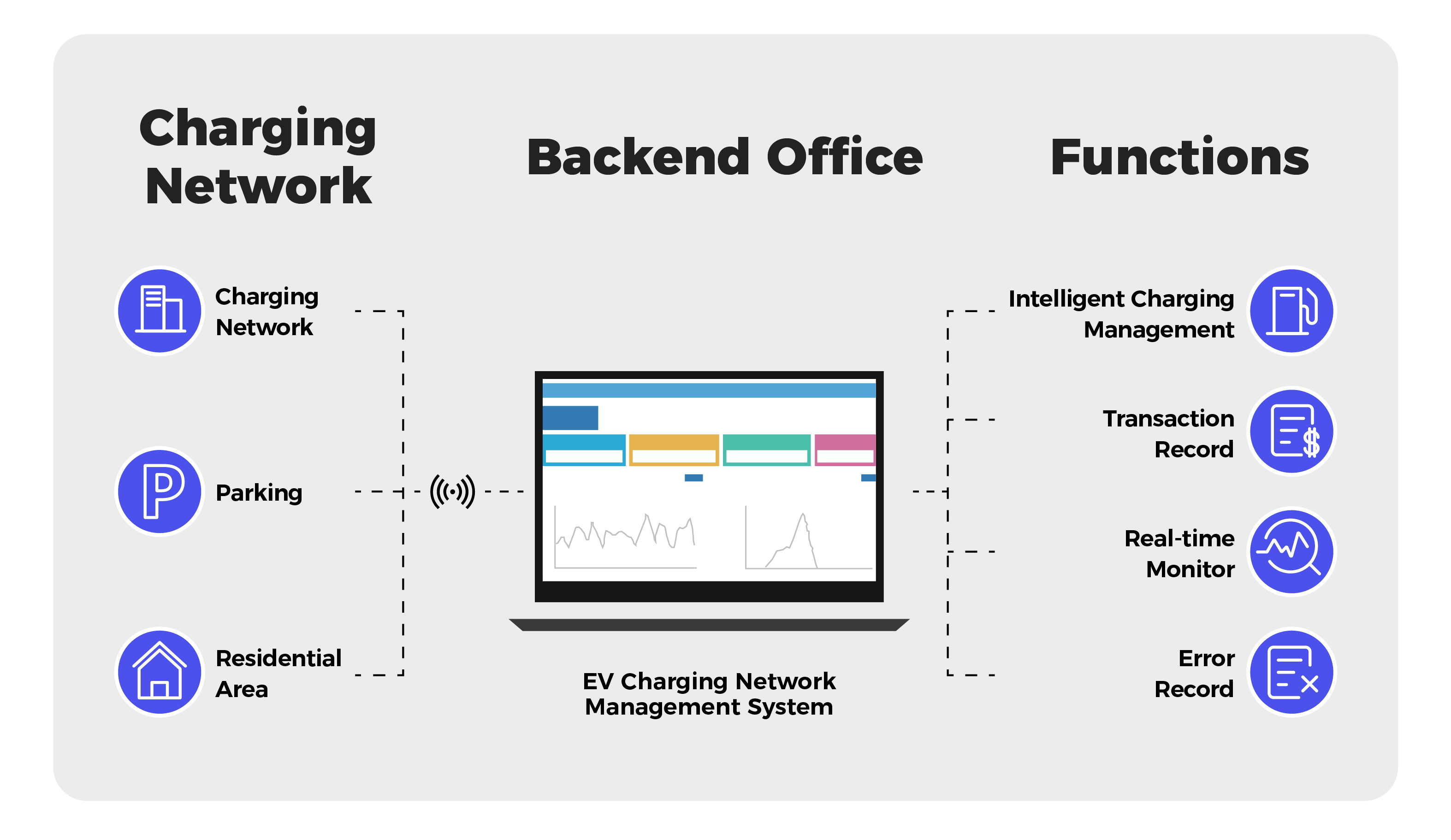

| Backend protocol | OCPP 1.6 JSON |
Built with high-quality materials to withstand harsh environmental conditions and frequent use, ensuring long-lasting performance.
Delivers fast and efficient charging, reducing downtime and enhancing user convenience. Fully Certified: Complies with all relevant safety and quality standards, providing peace of mind for users.

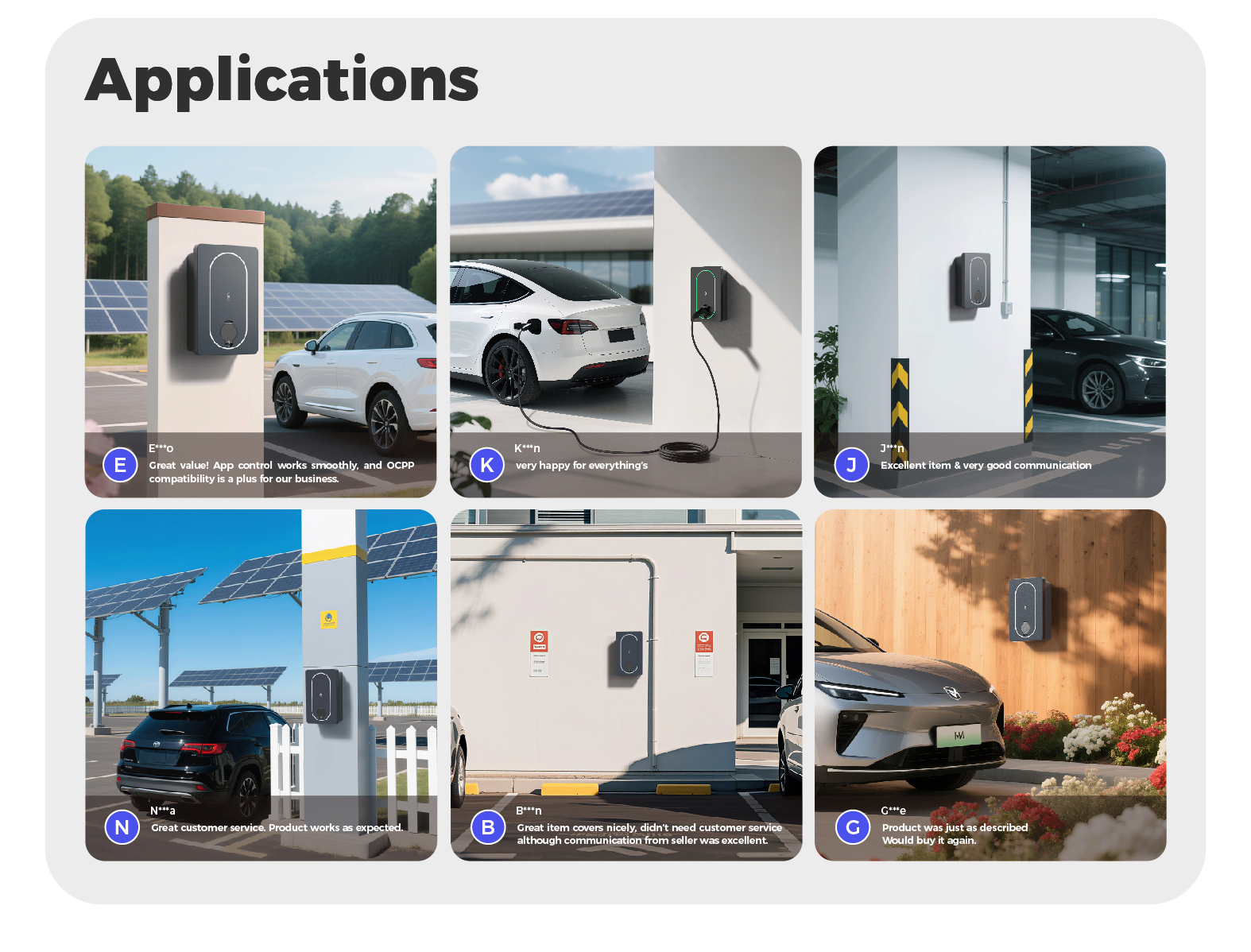

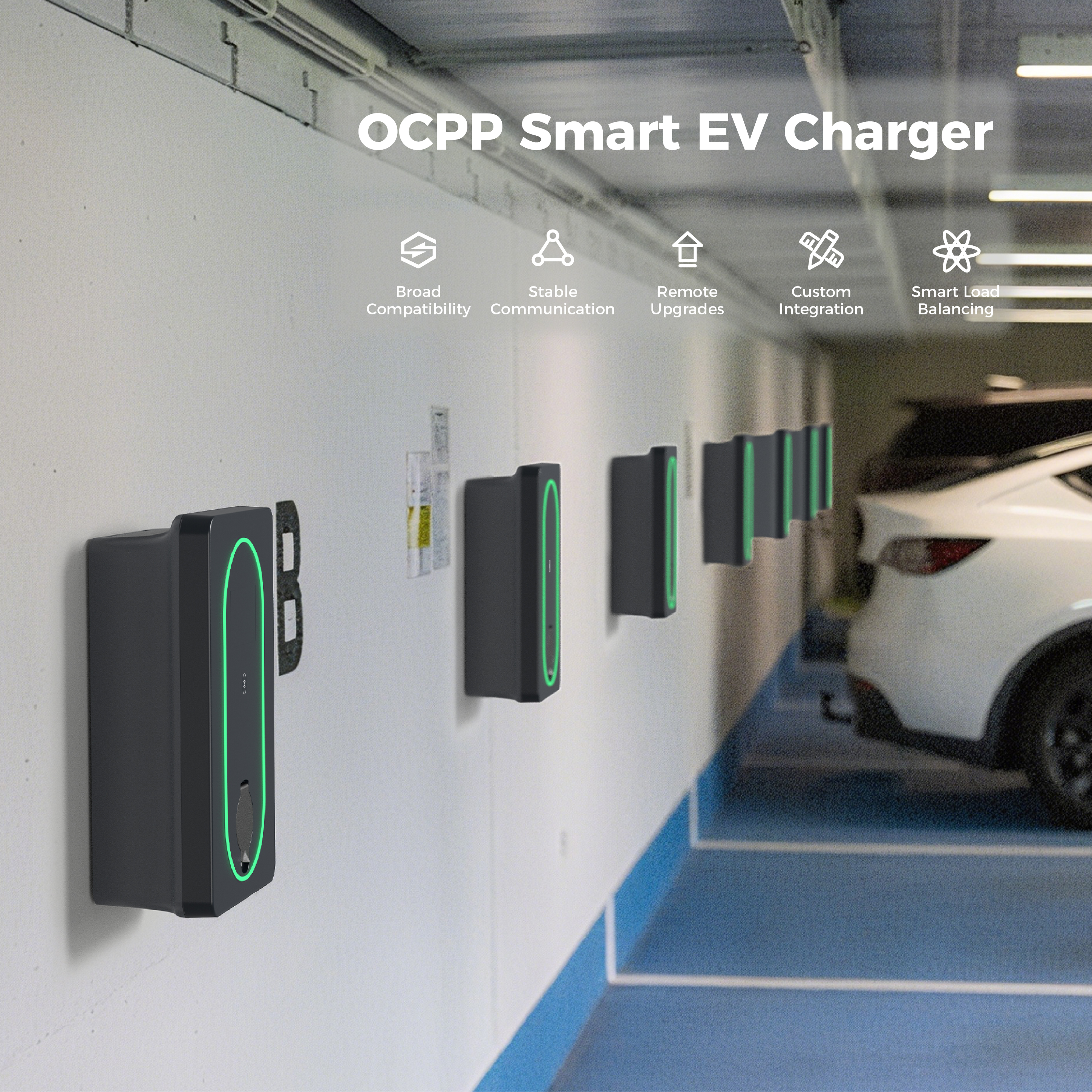

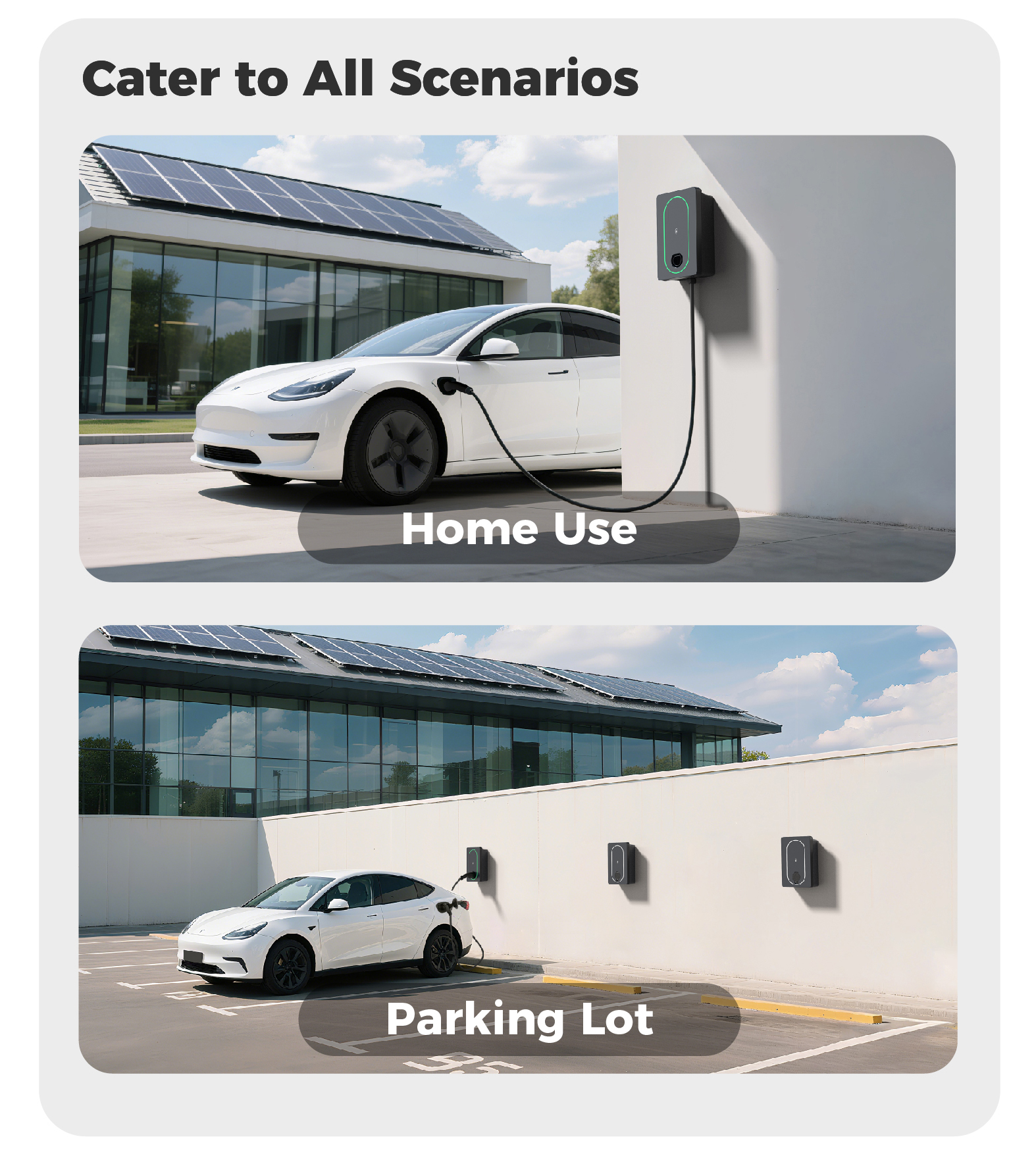

Can be installed in various locations such as homes, commercial buildings, parking lots, and more.
Charge with solar energy or even use the energy in your car to power your home.
The charger supports a power output range of 1.4kW to 22kW, operating on both single-phase (230VAC) and three-phase (230/400VAC) electrical systems.

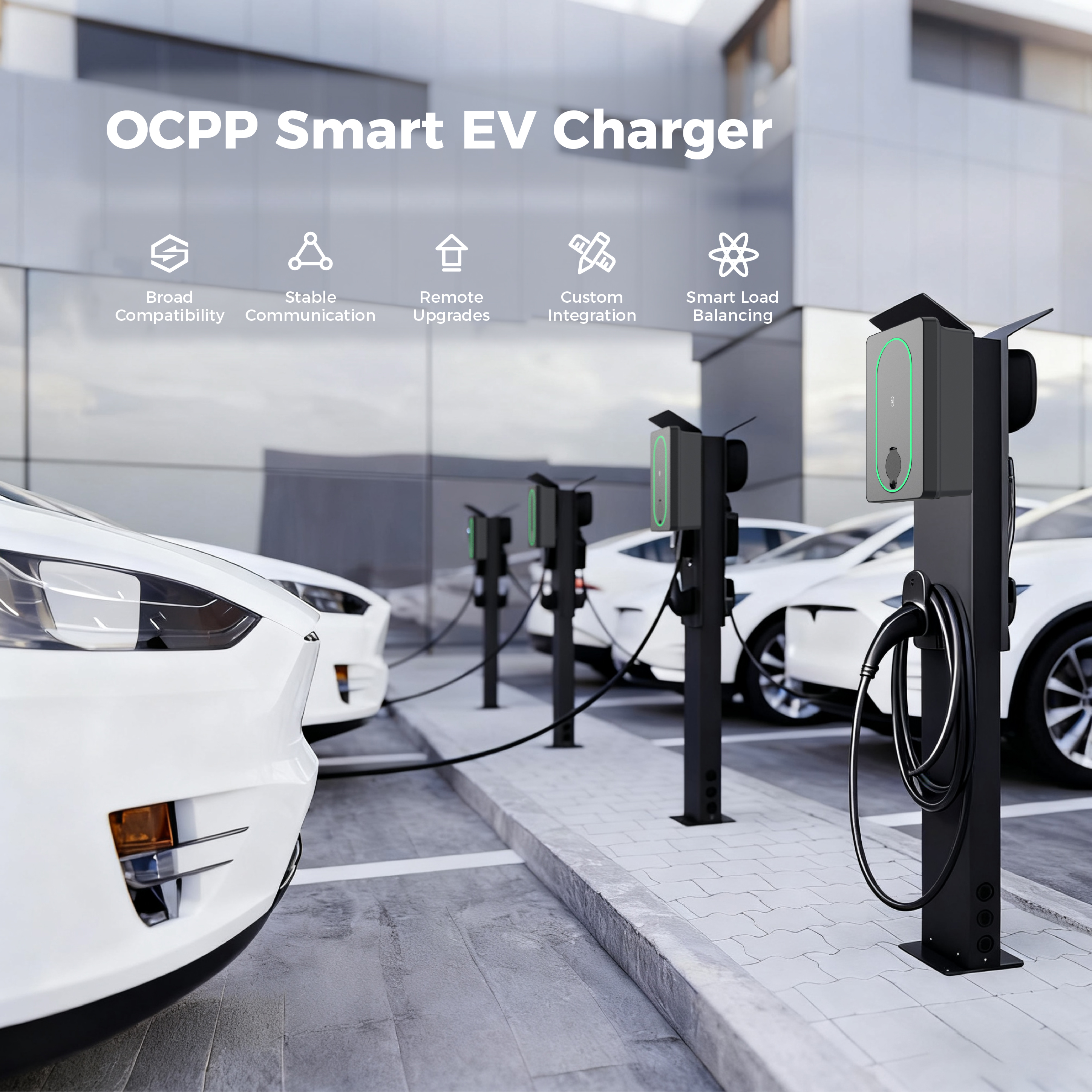

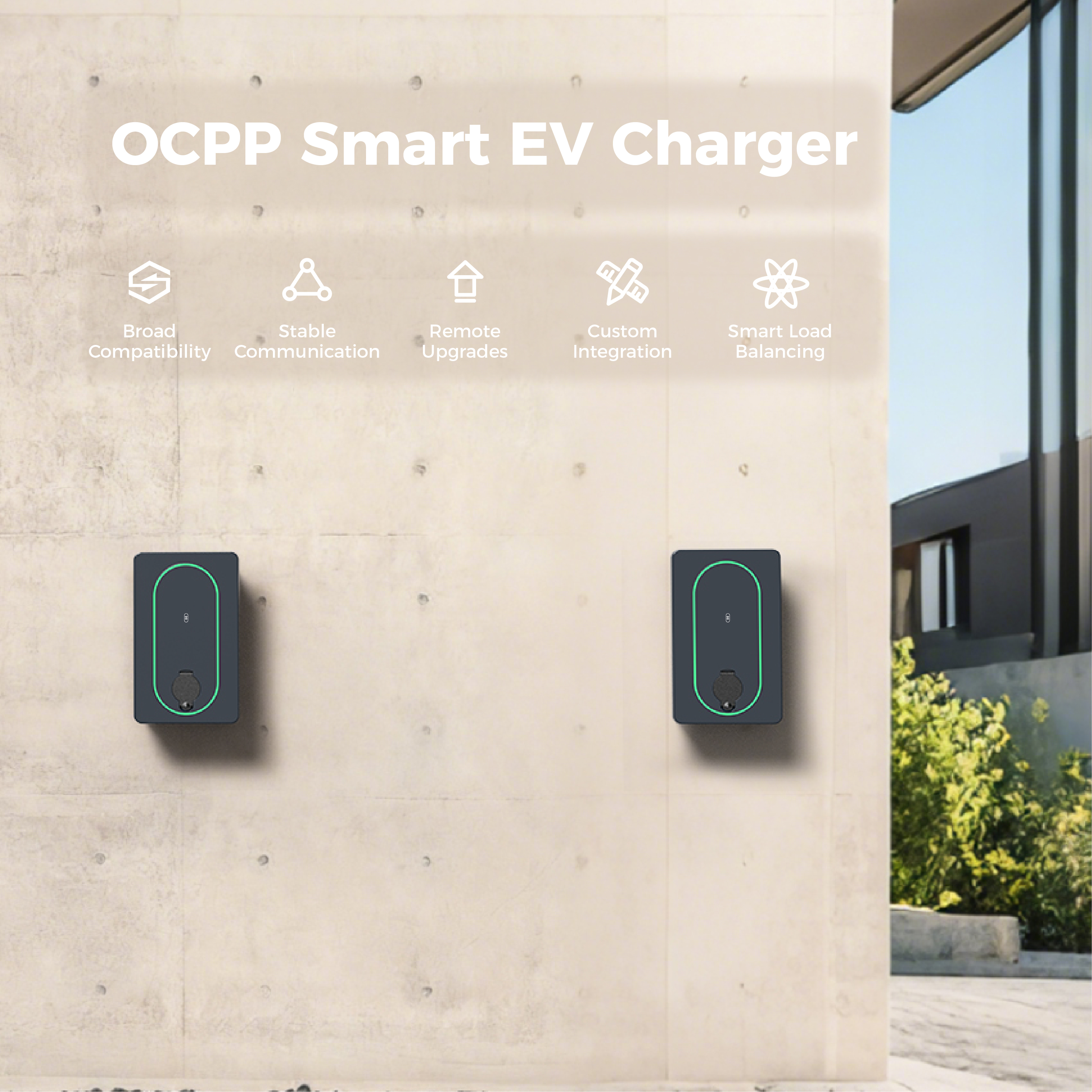

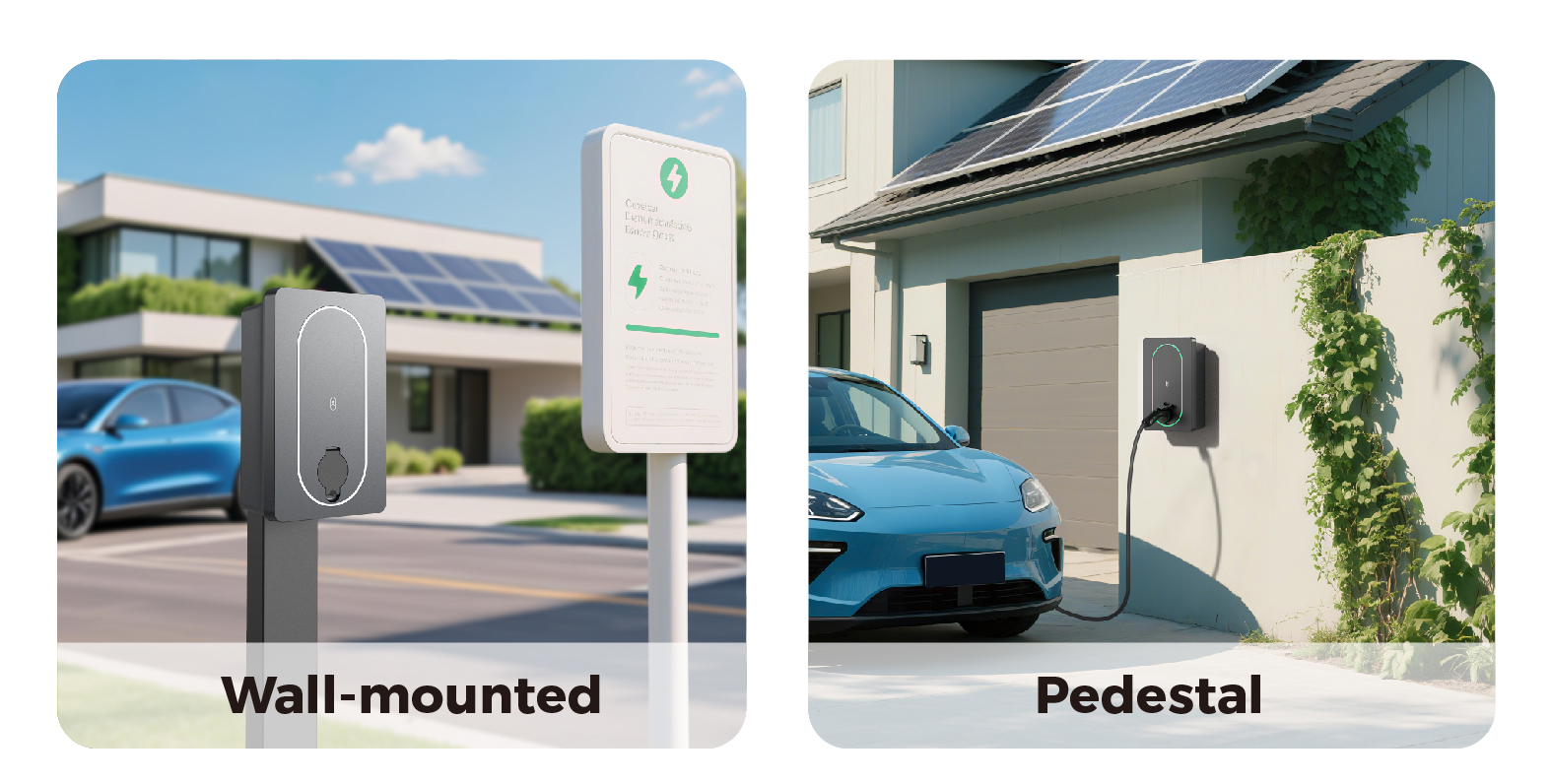

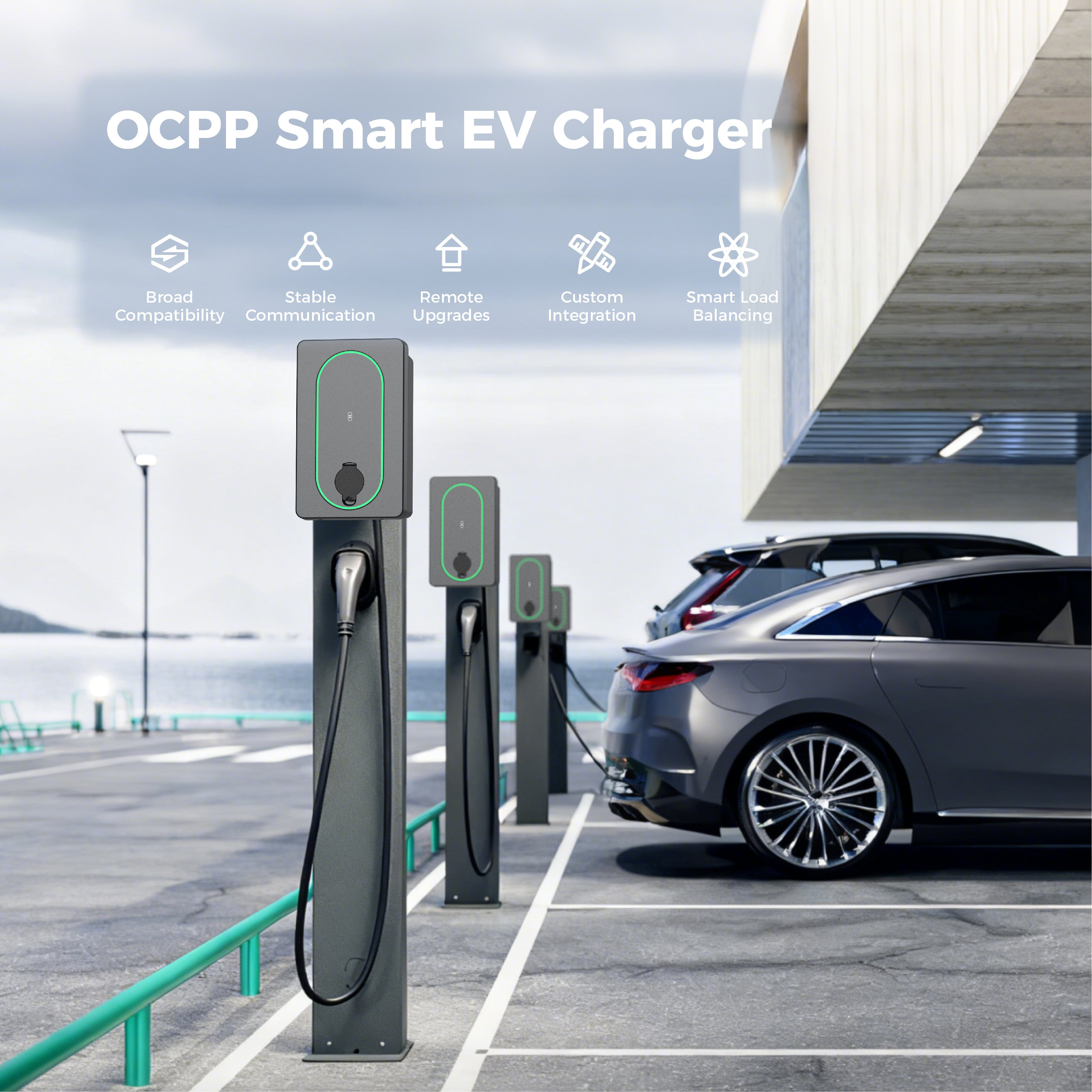

Yes. The unit supports both wall-mounted and pole installation options, making it versatile for residential, commercial, or public spaces.
It features an IP55 protection rating and IK10 impact resistance, alongside UVP, OVP, OCP, relay stuck, over-temperature protection, and integrated 6mA DC RCD protection.
The charger supports connectivity via RFID, Wi-Fi, BLE, and optional LAN. User authentication can be managed via RFID, App, Plug & Charge, and OCPP 1.6 JSON backend protocols.
Yes. ODM and OEM customization options are available, allowing businesses to adjust branding features and specifications according to their requirements.
Yes. The charger supports carbon footprint reduction features, enabling you to charge your vehicle with solar energy or even utilize vehicle-to-home energy configurations.
