| Part Number | Emitted Color | WD(nm)/CCT | Lens Color | Vf(V) IF=@20mA | Iv(mcd) IF=@20mA | Viewing Angle | ||
|---|---|---|---|---|---|---|---|---|
| Typ | Max | Min | Typ | |||||
| AL-S3528SDRC/60-TL01 | Deep Red | 640 | Water Clear | 1.8 | 2.4 | 50 | 100 | 120 |
| AL-S3528SRC/60-TL03 | Red | 625 | 1.8 | 2.4 | 200 | 400 | 120 | |
| AL-S3528SOC/60-TL02 | Orange | 610 | 1.8 | 2.4 | 200 | 400 | 120 | |
| AL-S3528SYGC/60-TL0 | Yellow Green | 570 | 1.8 | 2.4 | 50 | 100 | 120 | |
| AL-S3528SYC/60-TL03 | Yellow | 589 | 1.8 | 2.4 | 200 | 400 | 120 | |
| AL-S3528SUGC/60-TL08 | True Green | 525 | 2.8 | 3.6 | 500 | 1000 | 120 | |
| AL-S3528UBC/60-TL02 | Blue | 470 | 2.8 | 3.6 | 200 | 400 | 120 | |
| AL-S3528CWY/55-T7L | Cool white | 10000 | Yellow Diff. | 2.8 | 3.6 | 2000 | 2500 | 120 |
| AL-S3528NWY/55-T7L | Neutral White | 6500 | 2.8 | 3.6 | 2000 | 2500 | 120 | |
| AL-S3528WWO/55-T7L | Warm white | 3000 | Orange Diff. | 2.8 | 3.6 | 2000 | 2500 | 120 |
All items will be shipped by DHL, UPS, EMS, airmail with tracking number in order to speed up the delivery!

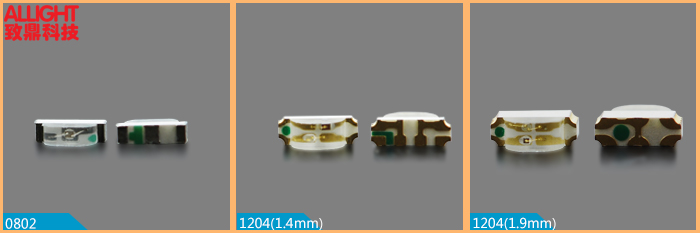

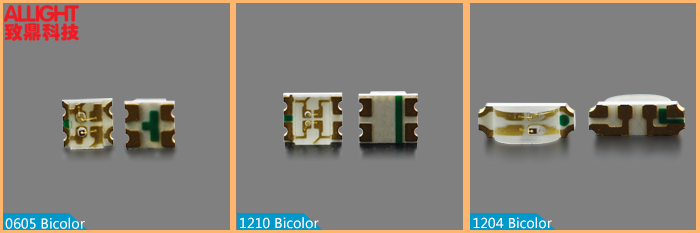

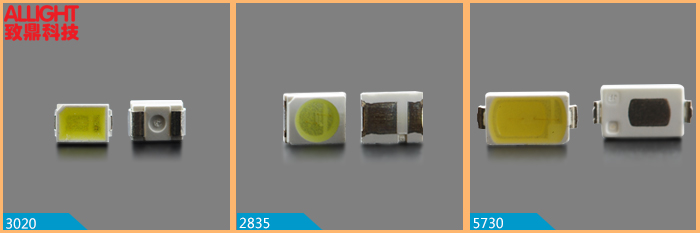

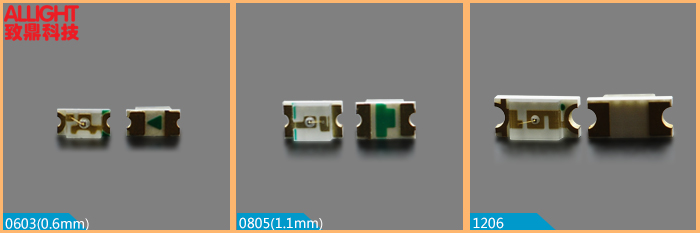

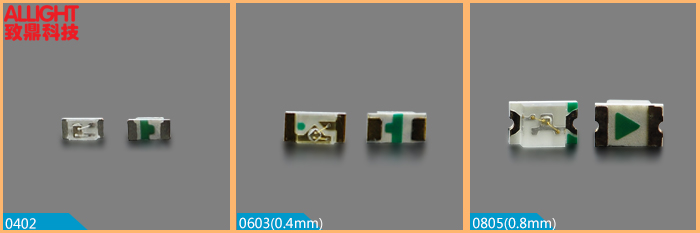

3528 SMD LED lamps, SMD 0805, 5050, 0402, 0802, 1206, 1210, 1204, 3020, 0605 and so on, please feel free to send us your enquiry!
Comprehensive and Professional service provided in LED field

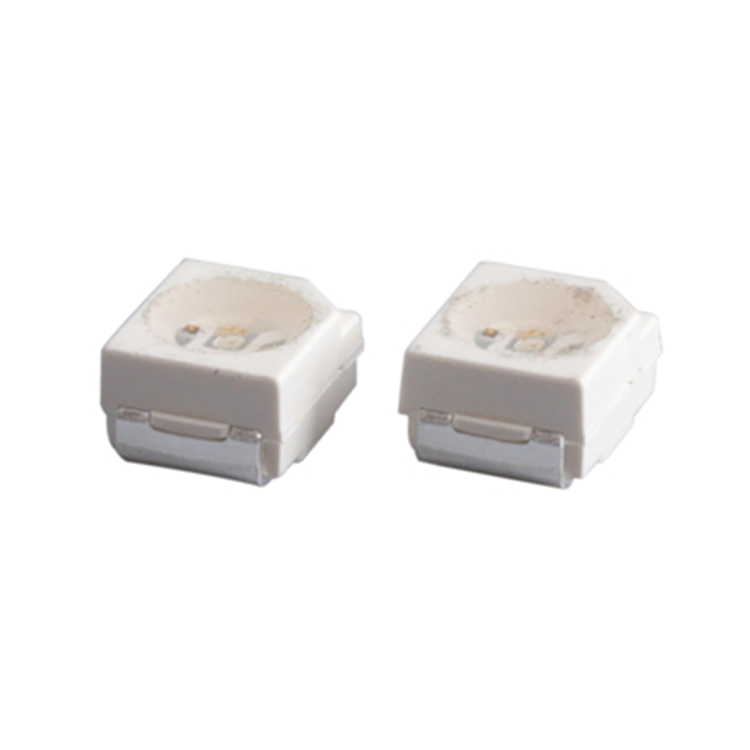

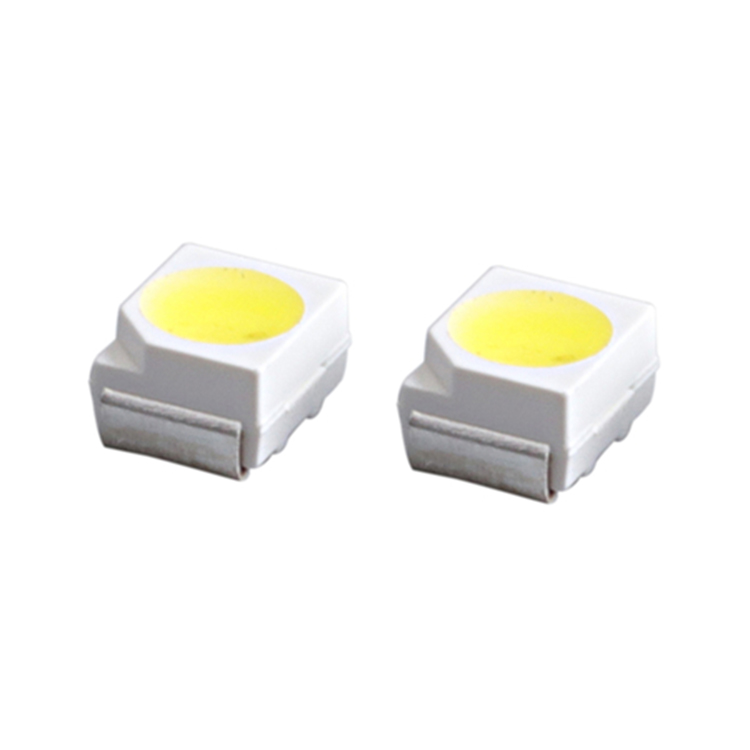

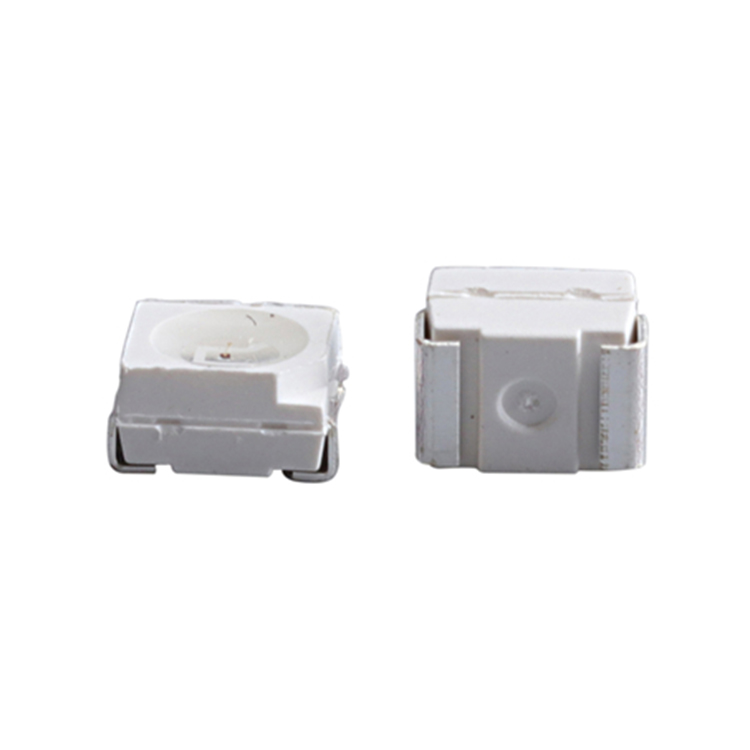

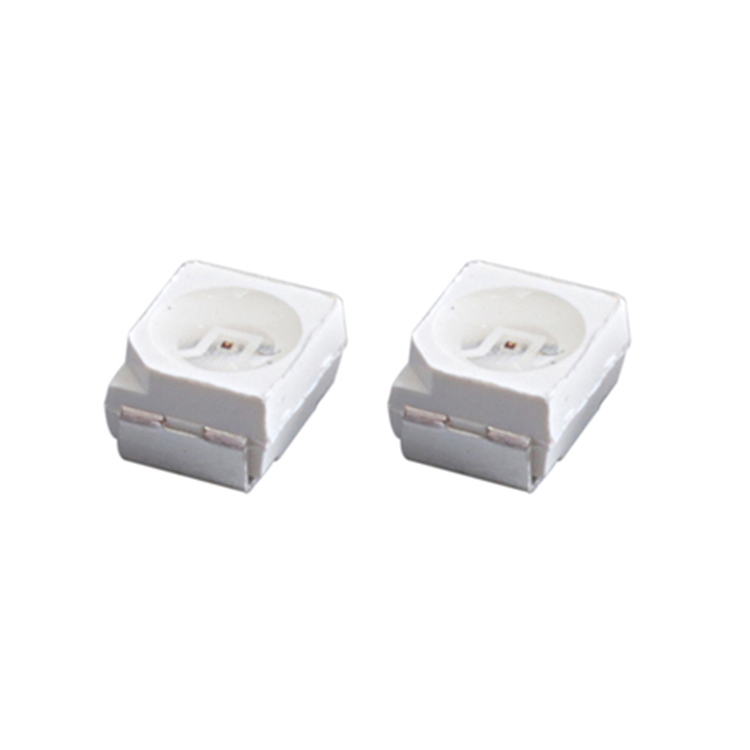

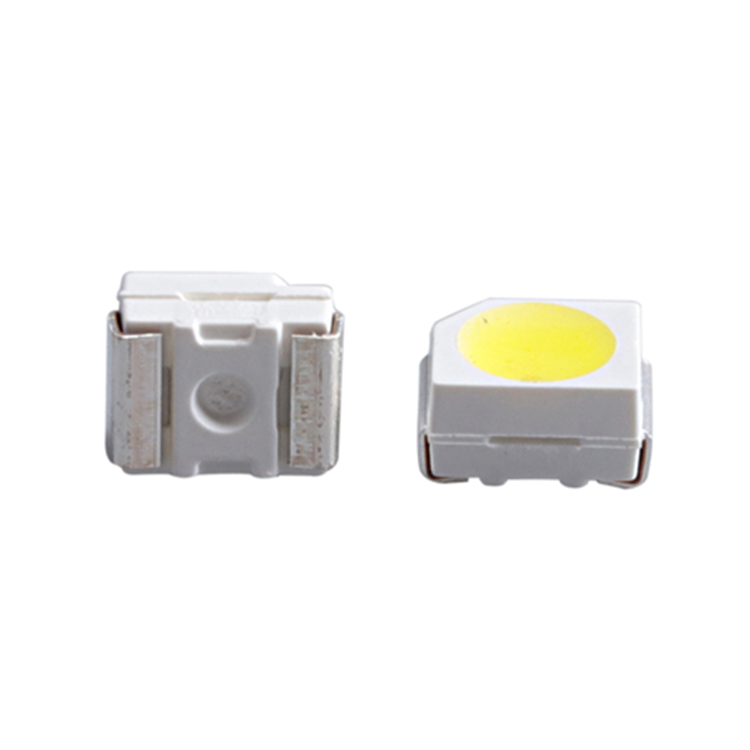

1. What are the key features of the 3528 SMD LED lamps?
They are lightweight, thin, highly resistant to mechanical vibration, consume low power, produce low heat, and are Pb-free, offering high reliability and a long lifespan.
2. What colors are available for the 3528 SMD LED series?
They come in various emitted colors, including Deep Red, Red, Orange, Yellow Green, Yellow, True Green, Blue, Cool White, Neutral White, and Warm White.
3. What are the common applications for 3528 SMD LEDs?
They are widely used for indoor and outdoor commercial lighting, LED modules, LED strip lights, decorative lighting, and other energy-saving illumination setups.

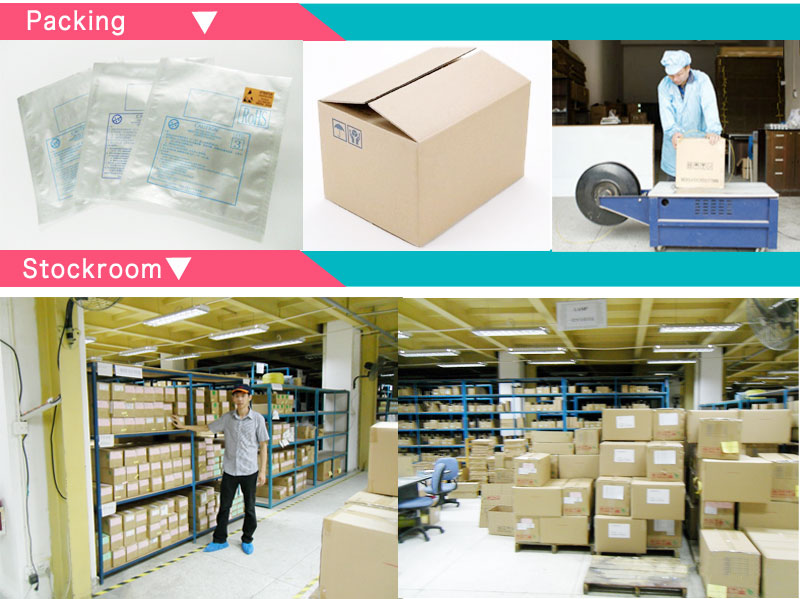

4. What shipping methods are used for these products?
All items are shipped via express services like DHL, UPS, EMS, and tracked airmail to ensure rapid and secure delivery.
5. What additional components do you offer besides the LED lamps?
In addition to 3528 SMD LED lamps, drivers, heat sinks, and compatible lenses are also available for purchase.
6. Do you support OEM services for custom requirements?
Yes, OEM services are fully supported, providing monthly new product development capabilities to help expand your market.
